PSA Oxygen Generator With Cylinder Filling station

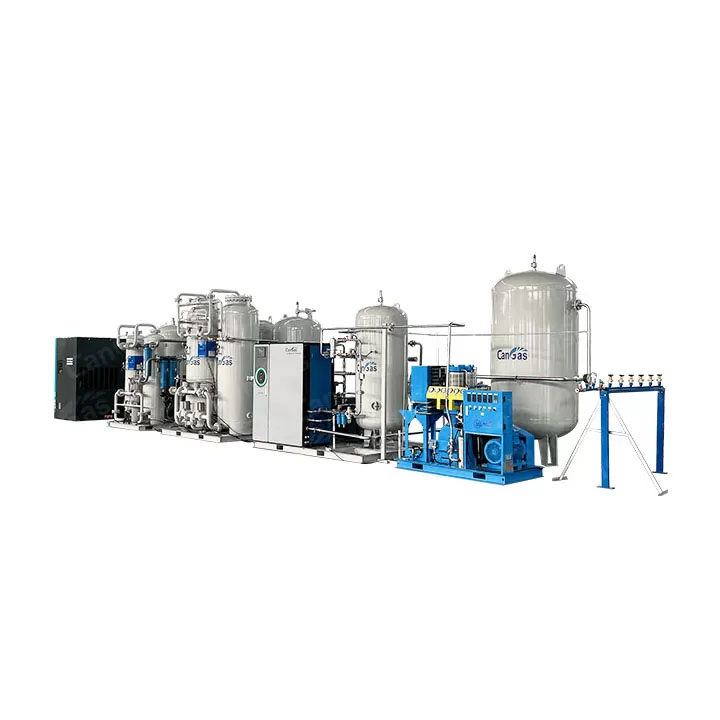

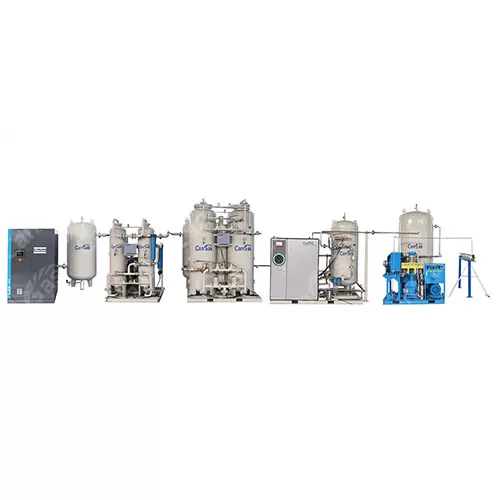

CanGas® CFS medical oxygen generation and cylinder filling system uses PSA oxygen genera-tor to directly produce medical oxygen from compressed air on site. After pressurization, the pressure for cylinder filling can reach 150 or 200bar, which can realize continuous production and cylinder filling of medical oxygen on site.

Inquire Now

Key Features

● Cost-effective by low operating costs

● Sophisticated and reliable technology

● Exact purity for every application

● Medical oxygen-compatible components

● Easy to handle, install and maintain

● Automatic and unattended operation

● PLC+Touch-screen control panel with maintenance free, pressure & purity & flow monitoring, and alarm/maintenance reminders, parameter settings, logs

● Compact - completely pre-piped and skid mounted

● Produces oxygen from only raw material - ambient air

Models & Specifications

Model	Oxygen flow (Nm³/h)	Oxygen refiling speed (cylinders/day)	PSA oxygen generator outlet pressure	Cylinder refilling pressure	Oxygen purity
CFS-3	3	12	Standard 5bar 5-10bar customizable Bypass for direct oxygen supply to hospital	100-300 bar customizable	Standard 93% Option A ：95% Option B ：99.5%
CFS-5	5	20
CFS-10	10	40
CFS-15	15	60
CFS-20	20	80
CFS-25	25	100
CFS-50	50	200
CFS-80	80	320

Each Project is Custom-Built!

SPEAK WITH AN EXPERT

At CAN GAS, we listen to your demands and design the best possible solution for you. You can get the full line from air compressor to high quality cylinders – whatever your need may be.

We design your specific solution based on application, capacity, purity, pressure, classification requirements, ambient conditions, and height above sea level.
