Introduction to the characteristics of modular PSA oxygen generator

In recent years, modular air separation equipment has gradually attracted market attention, and some powerful manufacturers have begun to get involved in the design and development of modular products;

The so-called modular design is to decompose the product into several parts (also called modules). Different modules follow a unified connection interface and each has independent functions; the final product can be obtained by arranging and combining different modules. Among them, modules of the same type can be reorganized and interchanged.

The biggest advantage of modular design is that the parts are customized and standardized. It can not only meet the customization needs of equipment, but also take into account the efficiency of standardized production.

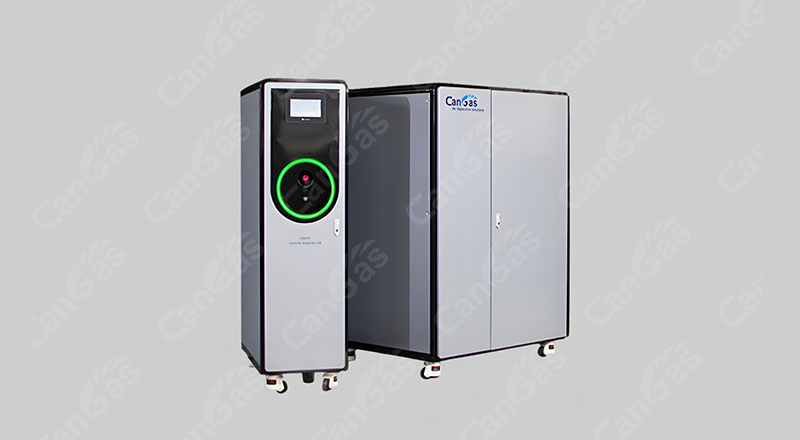

The SMART-C series oxygen generator is a modular PSA oxygen generator under CanGas; its core working principle is pressure swing adsorption. In the process of alternating cycles and changing pressure, it continuously adsorbs nitrogen molecules in the air raw materials and enriches and produces high-purity oxygen.

The biggest feature of this series of products is its high integration. Both the volume and weight are much smaller than traditional oxygen generators; at the same time, it takes up little space and is easy to install, which is very suitable for small and medium-sized oxygen needs.

Product features

⚫ Module design: realize multi-module and flexible combination of oxygen generator to meet different oxygen demand. Configurable SMART compressed purified air source module

⚫ Independent integration: the system is divided into oxygen production module and gas source module. The gas source module has built-in high-quality air compressor, air treatment system, air storage tank, etc.; compact structure and small footprint

⚫ Performance guarantee: multiple operation monitoring and protection, excellent quality verified by time. Optional combined air drying system can effectively ensure that the performance of molecular sieve is not damaged and extend the service life of molecular sieve up to 100,000 hours

⚫ Intelligent and convenient: one-button start, fully automatic operation, instant oxygen supply

⚫ Expansion and upgrade: a variety of system upgrade options, can adapt to a variety of oxygen demand

⚫ Reliable and efficient: 7*24 hours uninterrupted operation design, multiple operation monitoring and protection, stable and reliable, economical and efficient

⚫ Quiet operation: sturdy and special noise reduction design chassis, greatly reducing noise interference

⚫ Free movement: equipped with movable casters, the equipment can be flexibly placed at any gas point

⚫ Simple installation: convenient installation, "plug and play". It can save time and cost of project infrastructure;

⚫ Simple operation: no need to equip special operators
