Features and installation guide of diffuse and nasal oxygen enrichment terminals

In the plateau oxygen enrichment system, two types of terminals are often used, one is the diffuse terminal and the other is the nasal terminal; both can be equipped in the room at the same time; the diffuse terminal is suitable for multiple people to use in the room at the same time, and the nasal terminal is suitable for single person use. Compared with the diffuse terminal, the nasal terminal will be faster in solving the plateau hypoxia problem. However, in use, the diffuse terminal almost does not require manual adjustment. The terminal controller can monitor the indoor oxygen concentration 24 hours a day and automatically control the start and stop of the indoor diffuse terminal; so that the indoor oxygen concentration is always kept in a suitable range.

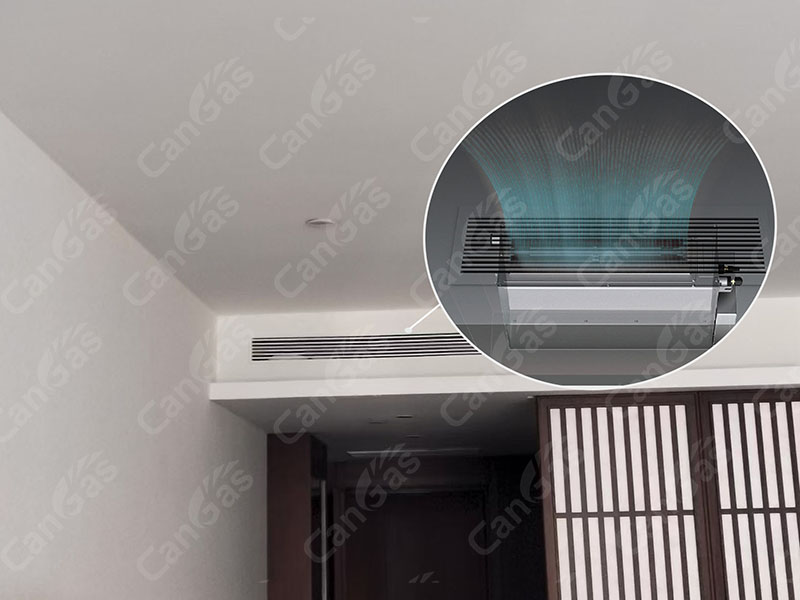

Among them, the diffuse terminal can be divided into wall-mounted diffuse terminals and concealed diffuse terminals. Wall-mounted diffuse terminals are installed on the wall and 2m above the ground. They are generally suitable for dormitories, residences, and office buildings. Concealed diffuse terminals can be installed on the side of the ceiling or on the ceiling. They need to be installed in conjunction with secondary decoration. They are generally suitable for hotels, office buildings, gymnasiums, stadiums and other places.

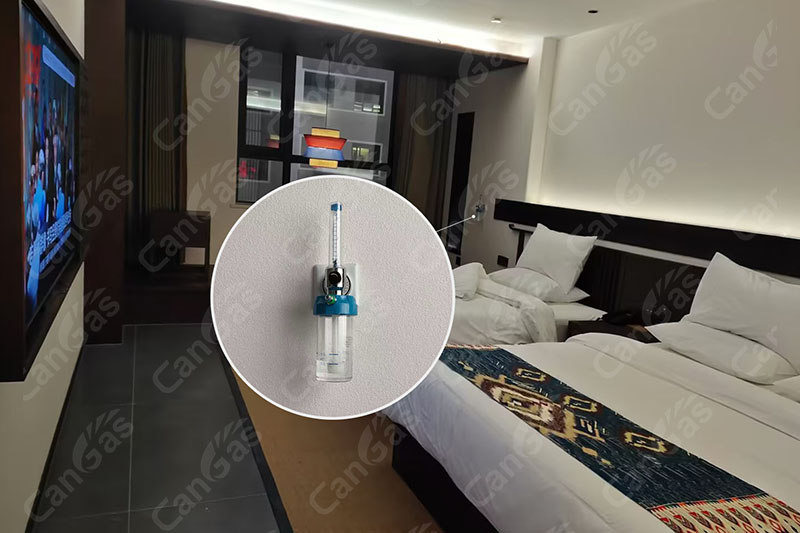

The nasal inhalation terminal is a personal direct inhalation terminal, which is generally installed at the head of the bed, sofa, etc., 1.4m above the ground. It is generally mounted on the wall and is generally suitable for oxygen bars, hotels, KTVs, office buildings, residential buildings and other buildings.
